Except where explicitly stated, this report represents work that I have done
myself. I have not submitted the work represented in this report in any other
course of study to an academic reward.









Name:

===========================


Date:

===========================

This project would not have been possible without the support of the following people.

To my fantastic supervisor Eamonn de Leastar to whom I am eternally grateful for his patience, guidance, knowledge and for being so generous with his time throughout the development period. Thank you, it has been a real pleasure working together.

To my classmates in Applied Computing class 2009 - 2013, what a fantastic bunch of people, thanks for the experiences over the last four years. It has been an honour.

To my lecturers at the Waterford Institute of Technology, you have all been so open and free with your sharing of knowledge, it has been an absolute pleasure learning from you at WIT.

To my sister Jean, you inspired me to work as hard as I have these last 4 years. I wanted to make you as proud of me as I am of you. If you beat me to PhD, I’ll buy you a bag of chips in Roccos.

To my father, I can only imagine the conversations we might have had, I suspect you would have loved playing with this equipment as much as I have.

To my mother, thank you for your friendship. You have always been a positive influence in my life. Some day you must sit down and explain how you can walk past, and in the time it takes to cross a room and without any prior involvement, solve a problem I have been struggling with for days.

To my four dogs Noah, Oscar, Rosie and Skippy, you are the best mutts a man could ask for.

As consumer programmable embedded systems shrink in size, cost and availability, it becomes feasible to deploy them in roles previously considered cost prohibitive. While the costs fall the computing power of these embedded systems rise sharply as they fast approach that of personal computers. This allows the computing enthusiast to develop interesting creations previously only available to large corporations with extensive research and development budgets.

The most well known consumer programmable embedded platform todate is the Arduino. The Arduino was released by Massimo Banzi, David Cuartielles, Gianluca Martino, Tom Igoe and David Mellis in 2005, but began life as a teaching tool for students at the Interaction Design Institute Ivrea in Italy. The project started in 2002, as Banzai had been hired by the IDII institute as an associate professor to help create new methods of performing interaction design [IEEE-2011]. Banzai hoped to create a platform to program a micro-controller in the same easy fashion as the on screen visuals created by the Processing language and its IDE. A masters student at IDDI, Hernando Barragan, took the first steps towards realising this when he created a prototyping platform he named Wiring which contained an IDE and a programmable circuit board.

Arduino was released as an open hardware prototyping platform and continues to be the go to technology for artists, electronics hobbyists and students [IEEE-2011]. I had my first experience with Arduino in 2010 when I purchased a DIY kit to create a remote control from eBay. The kit contained the Arduino Mega board which has the Atmel1280 16 MHZ CPU, 4 KB of RAM, and 128KB of storage, along with 52 mix of analog/digital inputs/outputs suitable for connecting to and controlling devices such as motors, switches or LED’s. After several months of reading forums, online tutorials and Youtube videos I had a good grasp of what the Arduino systems were capable of. I envisioned the Arduino FIO board to be perfectly suited to my project.

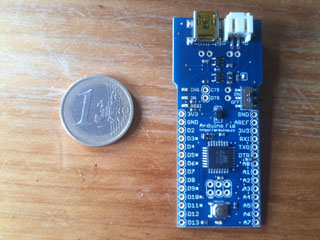

The FIO board has the Atmel328 8 MHZ CPU, 2 KB of RAM, and 32KB of storage, with a limited number of inputs/outputs, the main selling point of the FIO board is the on-board circuit to handle the trickle charging of Lithium Polymer batteries using solar panels, and equally important, the on-board cradle to hold an XBEE radio. The FIO is the perfect solar powered sensor platform which can communicate sensor data back to a collector system using the XBEE radio. It is for this reason I decided to make use of the Arduino FIO board in my project.

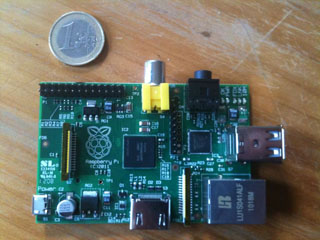

One recent particularly newsworthy development is the release of the Raspberry Pi earlier this year. The Pi is a Broadcom ARM CPU powered full featured computer system designed to be cheap and easy to use as a means to teach children how to write code. The Pi board was released at the end of February 2012, is no bigger than a credit card and has already shipped upwards of half a million units since. The Raspberry Pi foundation is a not for profit charity created by Ebon Upton et al. at the University of Cambridge in the United Kingdom.

It is interesting to many computing enthusiasts as this machine has a sub-40 Euro price tag, it can run from a battery source while still providing HDMI video output. The Pi system has multiple Linux distributions available, such as Archlinux Arm or Debian Squeeze [raspberrypi-2012]. The Linux distribution I picked for the Operating System on my Raspberry Pi is Debian 7 Wheezy. I have found Debian 7 to be comfortable to work with as it has access to a large number of applications and utilities compiled for ARM systems in the apt-get repositories, making it the perfect development platform for my project.

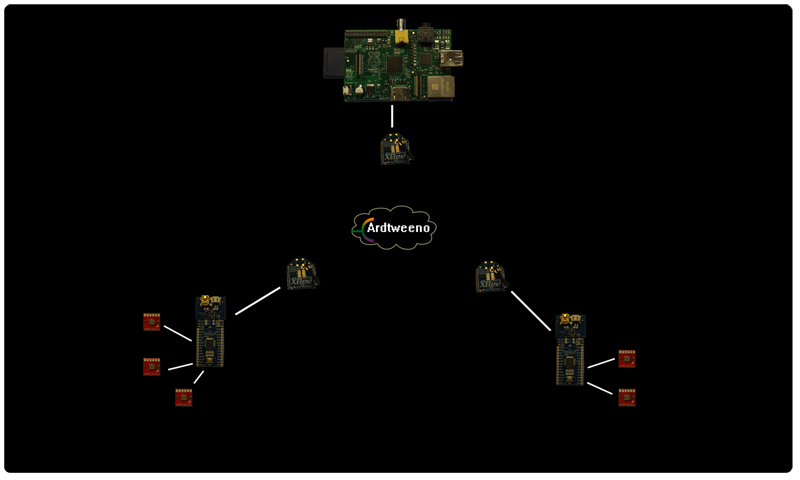

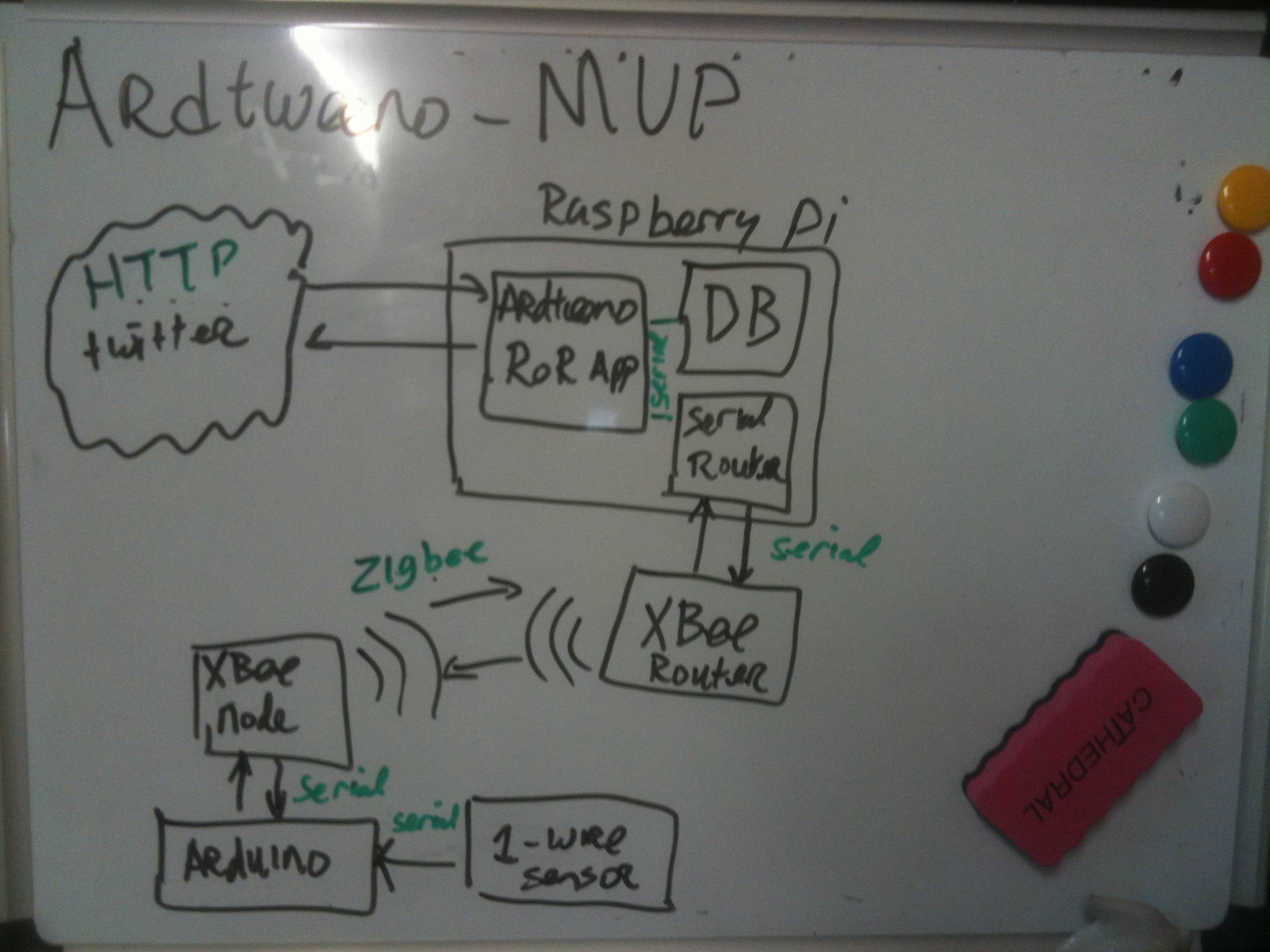

The Ardtweeno system I have developed is a distributed sensor mesh network gateway, which bridges devices connected through a serial link to devices over Internet Protocol (IP). The core system is a Ruby application with an exposed Sinatra micro web application acting as an API. It has been designed to run on the Raspberry Pi as a Platform as a Service or PaaS. I had hoped to develop the serial parser subsystem in Ruby also, but due to issues surrounding threading, namely threading while reading from a serial device, I abandoned the Ruby gem serialport in favour of a similar serial library in NodeJS. This is how it is implemented in the initial release, it is something I intend on changing at the earliest possible opportunity, I hope to replace this system with a C implementation of the parser sub system, as a Ruby C Extension.

Ardtweeno - Application Gateway for a Mesh Network

All data collected is logged to a database if one is configured and available. The intention for this is to allow statistical analysis and perhaps graphs to be generated. These graphs could potentially be included in hourly / daily reports which can be attached to the systems twitter feed in automatic updates and to other suitable social media. This is currently possible using data gathered through the Ardtweeno API.

I have several examples of the API being consumed, which can be seen in the tech demo web application which I developed to demonstrate some possible uses for the Ardtweeno system. The tech demo web application consumes the Ardtweeno API and generates output such as the dynamically constructed topology diagram for the Ardweeno gateway. However in the long run I hope to see the Ardtweeno system being used like a locally running version of [cosm]. The system can act as a gateway and storage solution for smart sensor platforms in the home. Eventually I hope to mature the system to the point where applications can be developed to take advantage of the Ardtweeno features while building home / commercial automation systems.

In later releases I hope to make it possible to interact with the service so that it may respond to commands received on twitter, by developing a Twitter bot to handle and respond user requests such as creating reports on demand, or simply attaching the latest graph in a reply tweet to the user. Integration with Dropbox, or some other cloud storage is also a possibility, where subscribers to the Ardtweeno system may receive update files within a folder shared between the user and the Ardtweeno system.

A feature which made it into the 0.2.x release branch at the last minute is the web hook push notification system. Ardtweeno has a rudimentary implementation of a watch list system where a user can instruct the gateway to place a watch on a node. Should traffic be received on the SerialParser from this particular watched node, Ardtweeno will construct a push notification packet and using a HTTP 1.1 POST request, push the packet to the designated web hook. This could potentially offer another way to interact with approved third parties. It could also be used to spur the update and automatic generation of news updates within an application which consumes the Ardtweeno services.

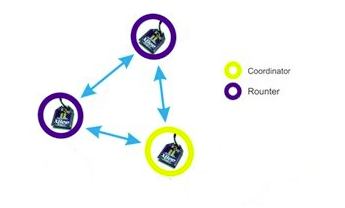

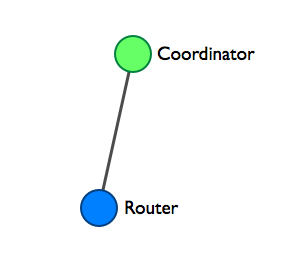

Simple XBEE Mesh Network [xbee-mesh-2012]

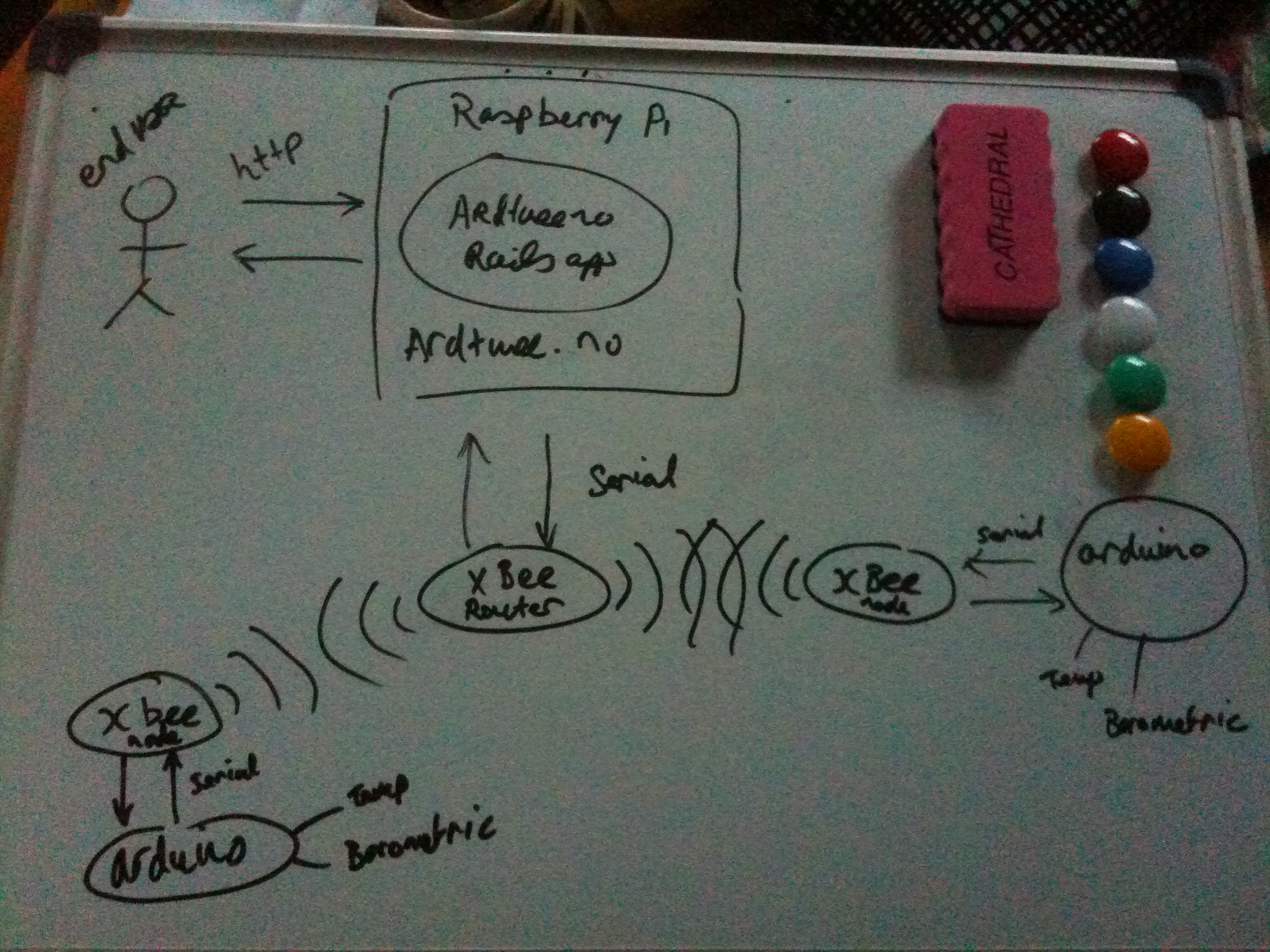

Early in development, I envisaged the ultimate goal of being able to push updated firmwares to mesh network nodes as required using the Ardtweeno Application Gateway. I have placed this goal on the long term project backlog. I hope to eventually allow for firmware uploads to non homogeneous node mesh network nodes as in a targeted node firmware upgrade to maximise the usefulness of the system. I also intend to allow the upgrading of all network nodes simultaneously in a broadcast fashion as would be the case in a homogeneous node mesh network. I plan to use the Arduino command line firmware compiler tool ino to develop a solution for pushing firmware updates to nodes on the mesh network using my Ardtweeno system [ino-2012].

This feature will increase the commercial appeal of the project exponentially and for this reason I’ll endeavour to include as soon as possible.

I envision the Ardtweeno system being used in locations where an end user requires reliable low maintenance embedded sensor platforms to take regular measurements of some industrial process or ambient state. The system also has great potential to provide the PaaS infrastructure on top of which developers can produce home automation applications to control processes within the home environment.

Case Study One. A factory floor with multiple assembly lines producing products which need to be kept at a specific temperature. Each mesh network node has a temperature sensor attached which maintains careful watch to ensure the temperature does not fall below a certain threshold, or breach an upper temperature level. If either condition is met, the node can raise an alarm with the Ardtweeno Application Gateway, but can potentially be programmed to take steps to rectify the situation such as turning cooling fans on or off, or perhaps heating elements up or down.

Case Study Two. A data centre maintains 15 racks of servers, all requiring strict temperature control. Each rack has a mesh network node attached, monitoring the temperature inside the rack, with a second sensor monitoring the pressure of the water cooling system. A drop in water pressure might indicate a pump has failed, at which point the node issues an alarm back to the Ardtweeno Application Gateway, to issue a request that a service engineer investigate, while lighting a warning light on the rack to provide a visual cue to aid service engineers examining the individual rack for sensor malfunctions. Upon inspection the rack appears to be fine, and the alarm was caused by an overly sensitive threshold for water pressure value in the mesh network node. This is resolved simply by uploading a firmware with this value relaxed to all mesh network nodes in the data centre managed by the Ardtweeno Application Gateway.

Case Study Three. An amateur bird watcher wishes she could capture a picture of visitors to the bird table in the garden. She travels often and sadly does not get the time to spend sitting with her camera ready to capture some nice pictures. She decides to use a technological solution and sets a mesh network node up in her garden, powered by solar panels and a small lithium polymer battery it is autonomous and requires no further maintenance. She then attaches an infra-red sensor to the mesh network node, along with a small JPEG camera. Using the Ardtweeno Application Gateway she instructs the mesh network node to take a picture every time the infra-red sensor picks up activity over a certain threshold, and then have it transmit the image back over the serial link to the Gateway for processing and storage. The Ardtweeno Application Gateway updates her twitter feed and attaches the captured images. The neighbours and friends which regularly view the feed, marvel at just how many crows seem to visit her bird table for their supper.

Case Study Four. An Electronic Engineer has an existing home automation system with an ARM micro-controller hooked up to each sensor. Each micro-controller powers an LCD which shows the current sensor reading value. He would like to have a system where he can visit a website a web browser on the laptop or perhaps his smart phone or tablet, but is unwilling to develop the entire system himself from scratch. A friend recommended the Ardtweeno Application Gateway which is a PaaS and might be perfect for his needs. With a little research, he commits to adding the XBee radio links to form a mesh network which can be then read by the Ardtweeno gateway. Once the system was up and running he set to work developing the simple web page which showed the list of connected devices and their current sensor readings.

I developed the Ardtweeno system according to Agile Methodology while making use of Extreme Programming techniques such as providing iteration sprints on a fortnightly basis. Each iteration producing production grade code at each iteration end, with full featured Engineering releases at set points through the semester. I had experience using Agile Methodology and Extreme Programming techniques during my internship with the Telecommunications Software Support Group (TSSG). I found the experience highly enjoyable and felt that it promotes good work practices. It is for this reason I choose Agile Methodology and the Extreme Programming techniques as the processes which I followed during my project development cycle.

[david@archbox ardtweeno]$ find . -name '*.rb' | xargs wc -l
   147 ./ardtweeno-gem/test/parser_test.rb
   247 ./ardtweeno-gem/test/rest_api_test.rb
    43 ./ardtweeno-gem/test/serialport_mock.rb
   254 ./ardtweeno-gem/test/api_test.rb
   166 ./ardtweeno-gem/test/nodemanager_test.rb
   114 ./ardtweeno-gem/test/dispatcher_test.rb
    15 ./ardtweeno-gem/test/test_helper.rb
    74 ./ardtweeno-gem/test/packet_test.rb
   104 ./ardtweeno-gem/test/node_test.rb
   121 ./ardtweeno-gem/lib/ardtweeno.rb
   300 ./ardtweeno-gem/lib/ardtweeno/nodemanager.rb
   117 ./ardtweeno-gem/lib/ardtweeno/node.rb
   538 ./ardtweeno-gem/lib/ardtweeno/dispatcher.rb
    98 ./ardtweeno-gem/lib/ardtweeno/packet.rb
   260 ./ardtweeno-gem/lib/ardtweeno/restapi.rb
   542 ./ardtweeno-gem/lib/ardtweeno/api.rb
   221 ./ardtweeno-gem/lib/ardtweeno/serialparser.rb
    65 ./ardtweeno-gem/lib/ardtweeno/configreader.rb
    51 ./ardtweeno-gem/lib/ardtweeno/db.rb
    33 ./ardtweeno-gem/lib/ardtweeno/exceptions.rb
   558 ./tech-demo/tech-demo.rb
  4068 total

I have chosen to write all project documentation using the Asciidoc markup language [asciidoc] which allows me develop a living document. Asciidoc is perfect for my needs, as I created a toolchain wrapper for the Asciidoc tool during my internship at the TSSG. This toolchain allows the output of PDF documents with a nicely styled header, footer and coverpage from input written in the Asciidoc language. This tool is has now been released for public consumption by the [tssg] as an open source project on https://github.com here: [asciidoc2html-pdf].

I have taken a modular approach to the construction of the documentation, I break chapters and sections out into new Asciidoc files. Images are stored in a single location which I reference within the documentation files with relative path URLs. I then construct a single index file to reference each chapter and section in the order I require for the particular report. By taking this approach, it breaks the documentation into smaller and more manageable chunks which are nicer to work with. This approach also forces me to constantly keep an eye on the overall coherency and readability of the documentation, while also allowing the potential for reuse of documentation sections in different types of report at a later stage. On my internship I witnessed multiple occasions where documentation sections would be reused when building reports for different system stakeholders. This inspired me to attempt to emulate this work flow for my Ardtweeno system. The toolchain merges each section together into a single PDF document at build time.

All documentation is maintained under source control in the project Git repository which also includes technical documentation. The technical documentation is automatically generated from the documented source code.

NOTE: Technical documentation for the codebase is written side by side the code in the comments above each function. Using the Ruby gems rdoc, ri and yard technical documentation is automatically extracted then generated during the gem build process. This technical documentation will be available at http://rubydoc.info/gems/ardtweeno/ once the built gem artifacts have been uploaded to rubygems.org. Usage instructions will also be available in the project Wiki at https://github.com/davidkirwan/ardtweeno/wiki

This section contains the deliverables due for the Ardtweeno project.

With help from my project supervisor Eamonn de Leastar I have begun breaking down the project workload into manageable tasks, and then assigning them to the project backlog. On a weekly basis together we decide what to place on the agenda for this weeks iteration.

This section contains the Ardtweeno project backlog. Features planned in future releases are first added to the backlog. From here they are ranked in order of importance and priority, before being shifted into the Iteration Plan during the fortnightly sprints for implementation.

Engineering Release 2 of the Ardtweeno system is now ready to be released. All but a handful of features promised in the MVP feature list have been implemented in ER2. These remaining features have been pushed onto the project backlog with the intention of implementation at a later date.

The following features have been identified as set for inclusion into the MVP feature set and have been further broken up into three different stages:

11.1. Setup and Configuration

The setup and configuration section groups features which are available with the installation of the system. The least complex system requires a single network node, with a single sensor attached, and the skeleton firmware installed. This breaks out into the following userstories:

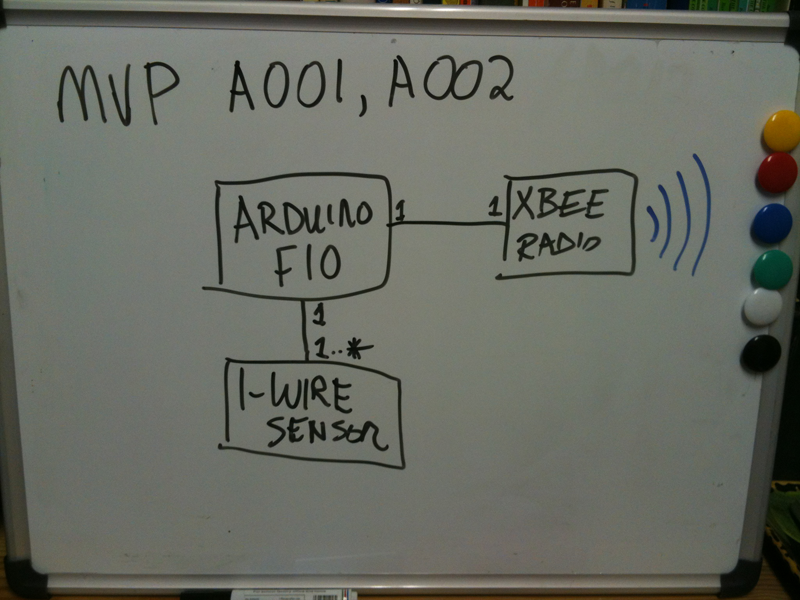

ER1 A001 - A002

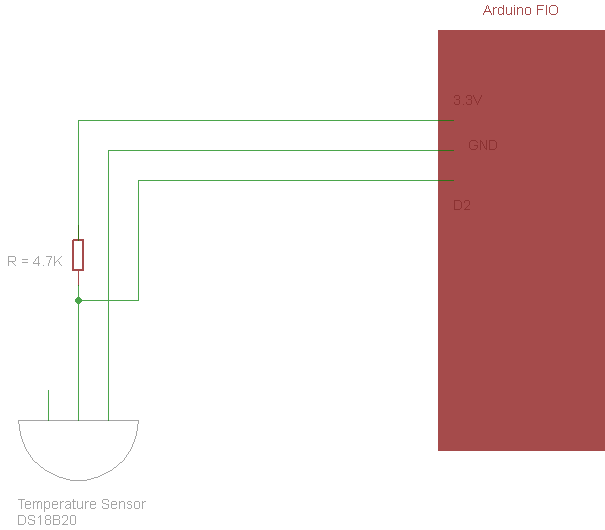

Single sensor attached to Arduino FIO with barebones firmware. Arduino FIO with XBEE Radio and single 1-wire compatible sensor attached, running the skeleton firmware.

A001
As an installation technician;

I want to have the 1-Wire library imported on the Arduino FIO;

So that I can read in a sensor value from a 1-wire compatible sensor which is
attached;

A002
As an installation technician;

I want to construct a formatted string from the sensor data in RAM on the Arduino
FIO;

So that I can transmit it out the serial interface;

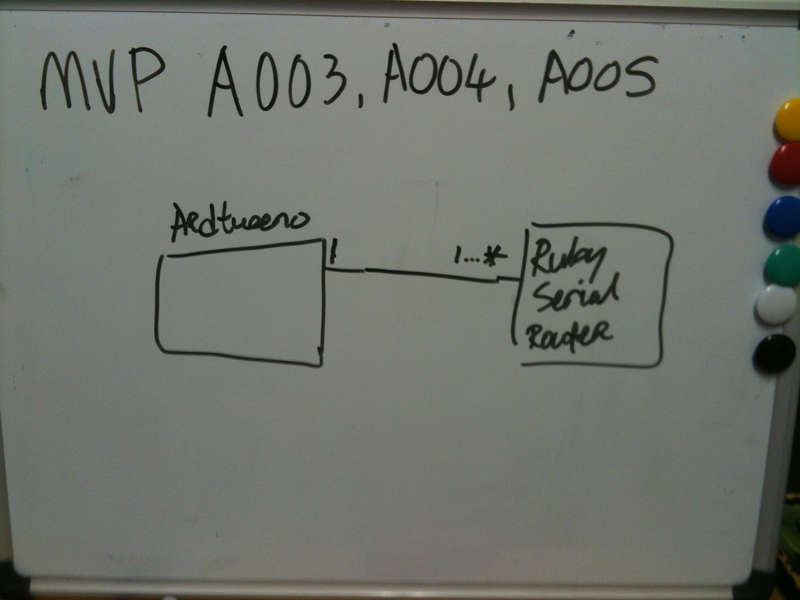

ER1 A003 - A005

Raspberry Pi Initial System Configuration. The Raspberry Pi machine is running the latest release of the Raspbian Wheezy distribution, Raspbian is a fork of the Debian compiled specifically to work with the ARM 7 platform. While it will in all likelihood work fine using any Linux distribution, I picked the distribution which was recommended by the RPi team, it is recommended you use a distribution version released after this date so as to take advantage of newly bundled kernel modules.

A003
As an installation technician;

I want to have at least the 18-09-2012 release of Raspbian Wheezy installed on a
SD Card in the Raspberry Pi;

So that I have the kernel modules available to operate all hardware likely to be
used in Ardtweeno;

A004
As an installation technician;

I want to have all dependencies required by RVM available on the Raspberry Pi;

So that I can install _Ruby Version Manager_ which allows easy access to the Ruby
programming language and also Ruby on Rails;

A005
As an installation technician;

I want to have the Ruby gems installed on which Ardtweeno depends;

So that I can make use of them in the Ardtweeno application;

ER1 A006 - A007

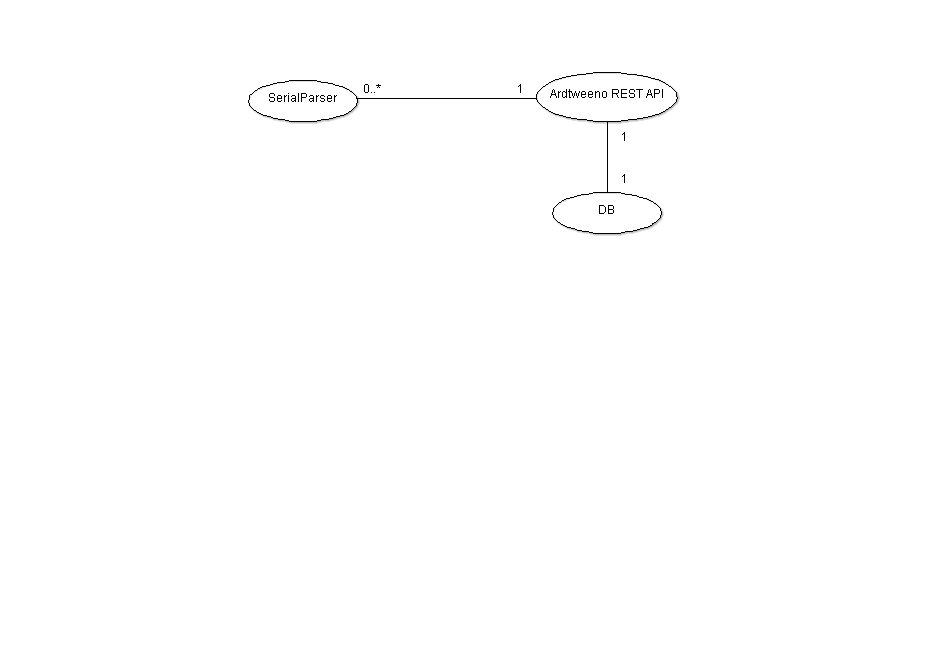

Ardtweeno Serial Router Configuration. The Ardtweeno Serial Router node.js application will be installed and run from the Raspberry Pi machine.

A006
As an installation technician;

I want the Ardtweeno Serial Router available on the Raspberry Pi;

So that I can launch an instance of the system to allow routing and or storage
of signals from serial devices;

A007
As an installation technician;

I want the Ardtweeno Serial Router to have access to a database;

So that any data gathered on the serial link, can be stored in the database for
later retrieval;

ER1 A008 - A0010

Ardtweeno Sinatra Web App Configuration. The Ardtweeno Sinatra web application, will be installed and run from the Raspberry Pi machine. The following barebones features will be available after installation of the MVP.

A008
As an installation technician;

I want the Ardtweeno codebase available on the Raspberry Pi;

So that I can launch the barebones system for configuration;

A009
As an installation technician;

I want the Ardtweeno Sinatra Web App to have access to a database;

So that any data previously gathered data can be read into the system;

A010
As an installation technician;

I want the Ardtweeno Sinatra web app to be able to display formatted test data;

To ensure that it is successfully displaying data read from the database;

ER1 A011

Database Setup. The system can be configured to work with any database suitable for use with a web application, However the Ardtweeno has been developed with MongoDB in mind and in the ER2 system only has MongoDB support implemented.

A011
As an installation technician;

I want to install a MongoDB database on the Raspberry Pi;

So that the Ardtweeno system can store and retrieve data;

11.2. Basic Network Configuration

The following userstories relate to the initial configuration of the XBee 802.15.4 Zigbee Radio Network.

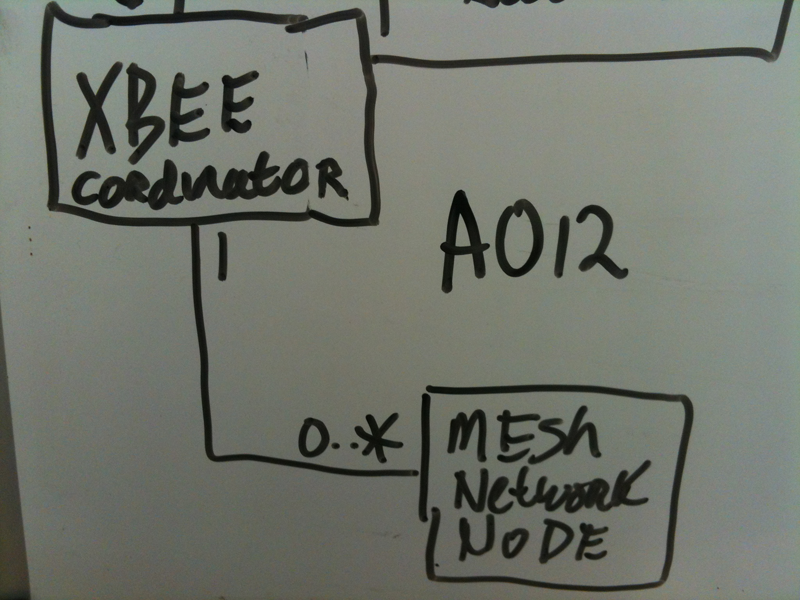

ER1 A012

Arduino FIO Network Configuration. Each Arduino FIO node, requires an XBee radio attached. The following userstories relate to this network provisioning.

A012
As an installation technician;

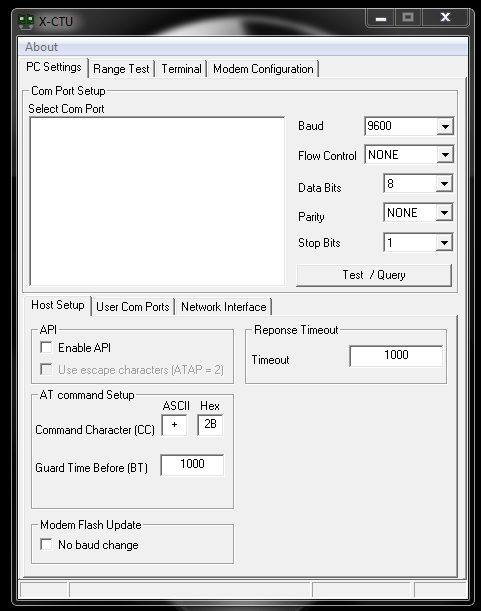

I want to configure an XBee radio transmitter to connect to the XBee Coordinator;

So that I can connect it to the Arduino FIO node, to allow network connectivity
from the Arduino device to other hosts on the mesh network;

ER1 A013 - A014

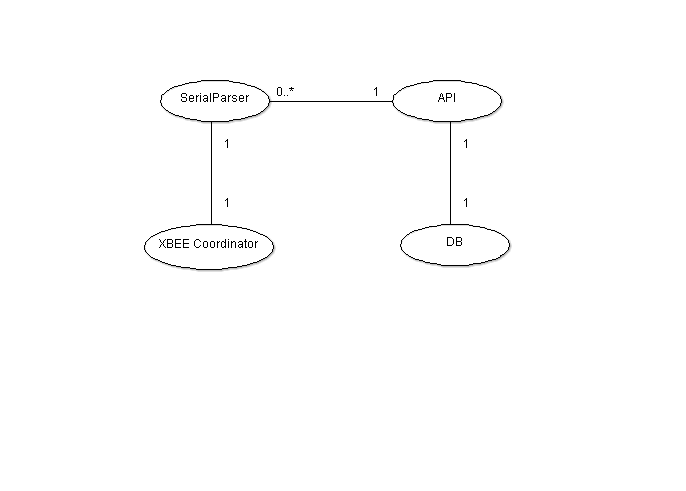

Ardtweeno Mesh Network Router Configuration. A single XBee router is required to coordinate the other XBee mesh network hosts. The following userstories relate to provisioning the XBee router.

A013
As an installation technician;

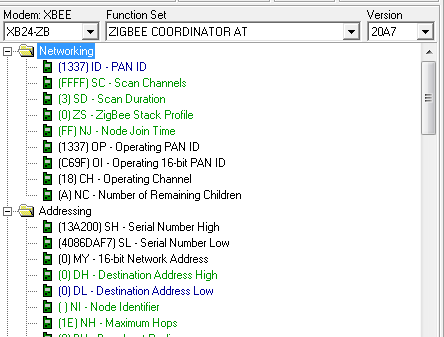

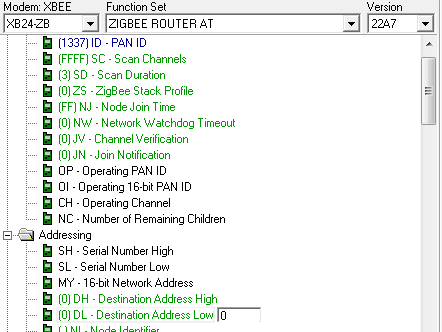

I want to configure an XBee radio transmitter to operate in Coordinator mode;

So that I can use it to coordinate the other XBee hosts in the mesh network;

A014
As an installation technician;

I want to connect a Coordinator configured XBee radio to the Raspberry Pi using the
USB breakout board;

So that the Ardtweeno Serial Router can interact with hosts on the XBee mesh
network;

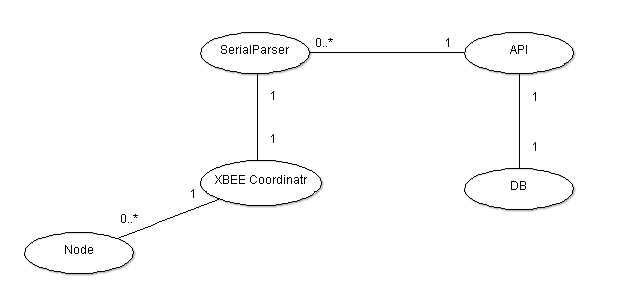

11.3. High Level Feature List

The following userstories will also be included in the Engineering Release 1 and together make up the minimum viable product (MVP). This section details some of the features which will become the main focus areas in later releases as the system becomes more stable and feature rich.

ER1 A015 - A017

A015
As an installation technician;

I want to format the data read in from the database;

So that I can construct a graph from the data using the R graphing system;

A016
As an installation technician;

I want to ensure that clients connected to the Ardtweeno application over HTTP;

Can view a sample report generated from data collected on the XBee mesh network;

A017
As an installation technician;

I want to allow a message to be written in a HTML form;

Which will accompany a freshly generated graph image in a tweet onto the Twitter
service;

ER2 will be released on the [ardtweeno-github] repository on May 20th to coincide with the Student Fair at the Waterford Institute of Technology, Ireland.

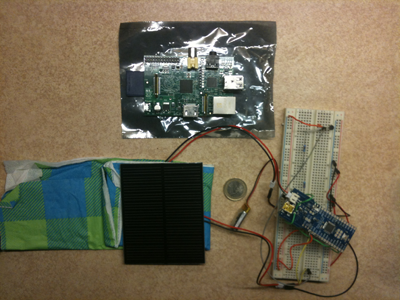

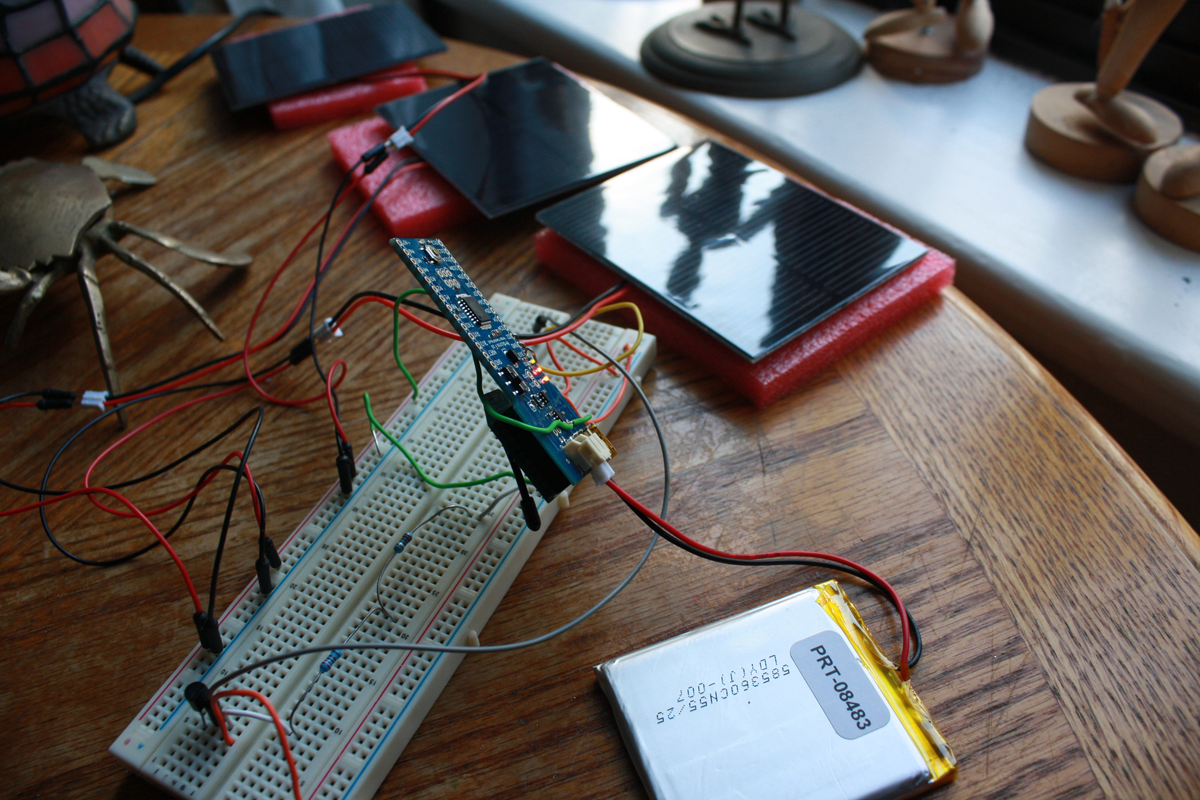

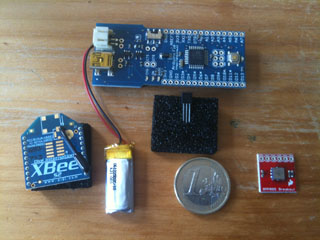

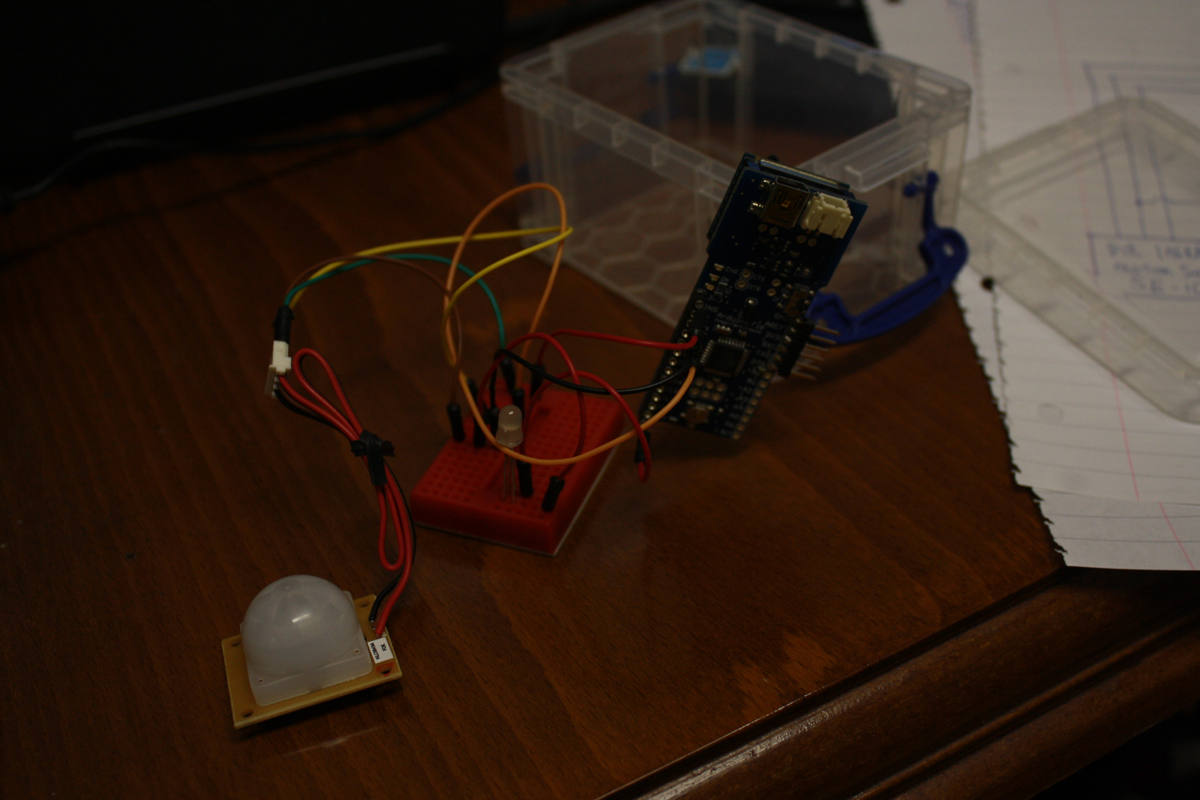

Arduino FIO and components used in a network node

This section contains the Minimum Viable Product class digram for the Ardtweeno system. I have also included a list of the Ruby Classes identified so far and their minimum viable product function designated for release in Engineering Release 1.

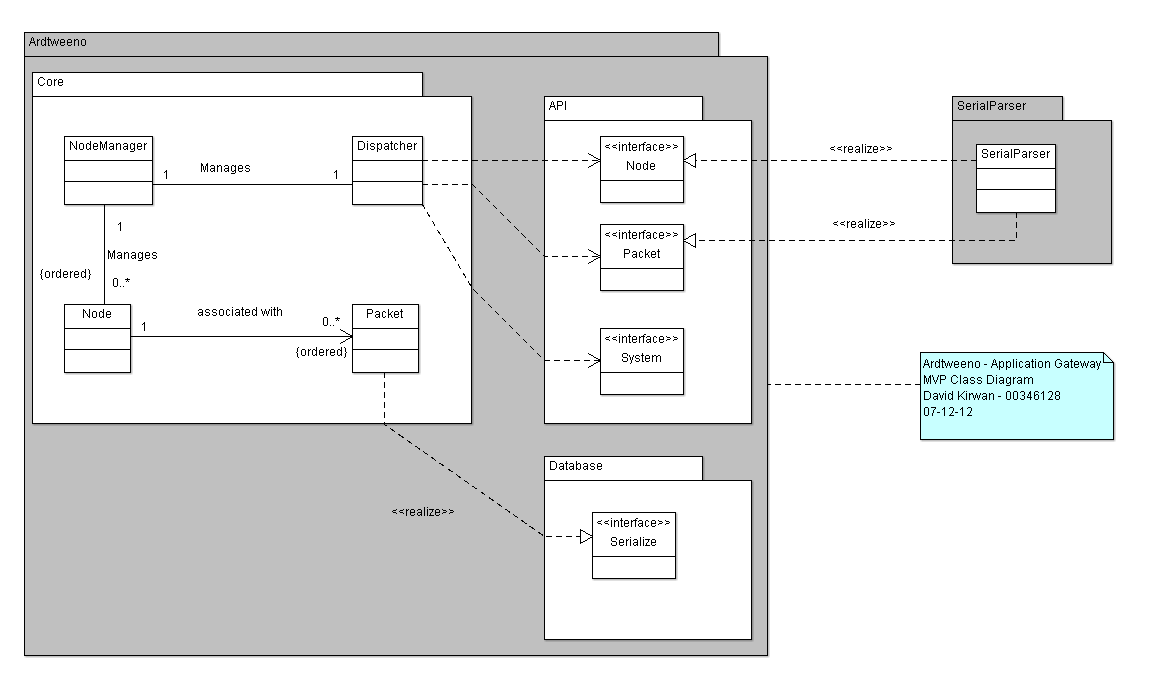

Ardtweeno Class Diagram

All Classes belong to the Ruby module Ardtweeno.

Ardtweeno::Dispatcher. The Dispatcher class handles the control of backend systems as follows:

Ardtweeno::SerialParser. The SerialParser class performs the following tasks in the MVP system:

Currently the SerialParser subsystem has been disabled due to threading issues with the Ruby serialport gem. A system with similar functionality has been implemented in node.js to get the project up and running. The intention is to reimplement the SerialParser with a Ruby C extension, or perhaps a C/C++ system. The serial parser subsystem will form a large part of the future development of the system in any case.

Ardtweeno::NodeManager. The NodeManager class performs the following:

Ardtweeno::Node. The Node class is designed to represent the body of knowledge required by the system to model a real world mesh network node.

Ardtweeno::Packet. The Packet class is a storage class to hold data received on the mesh network.

Ardtweeno::API. This class is responsible for handling requests received through the HTTP REST API.

Ardtweeno::ConfigReader. The ConfigReader has the ability to load and save configuration data. For the most part this system while implemented is not used within the system currently. At a later date as functionality is fleshed out, this configuration reader and writer class will ensure the settings are serialised to disk correctly.

Ardtweeno::DB. The DB class is responsible for initialising the MongoDB connector instance, from the passed parameters.

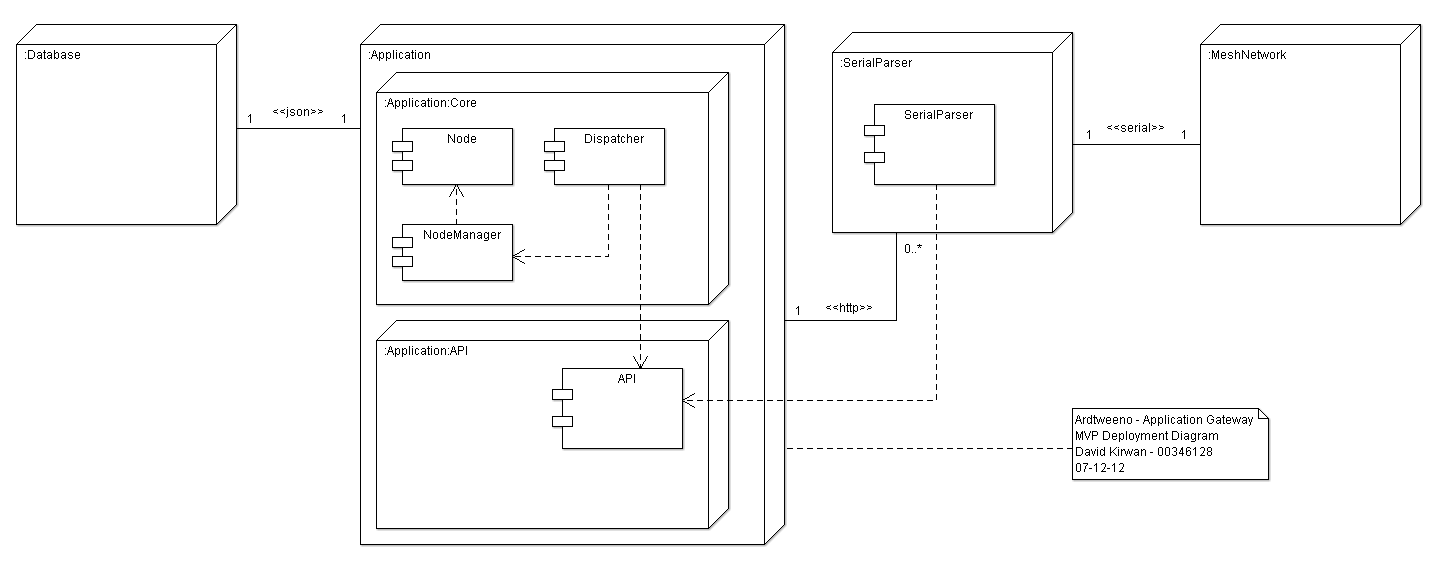

The following section contains the package diagram for the ER2 Ardtweeno system. This diagram aims to show the potential distributed nature of the Ardtweeno system. Subsystems such as the SerialParser are designed to have multiple instances executed at remote locations while communicating back to the Ardwteeno - Application Gateway using the HTTP REST API. This system architecture allows multiple mesh networks to be bridged by a single Ardtweeno - Application Gateway.

Ardtweeno MVP Package Diagram

The system does not have two way communication implemented, this is a job for future releases. The current SerialParser subsystem requires immediate redesign in C or C++. NodeJS while very quick to get up and running with, it is not suitable for the job I have tasked it with. I can start to implement the basic functionality of two way communication once the SerialParser subsystem has been implemented in a stable way on a tried and tested language such as C or C++.

An Application Programming Interface (API) is the means by which one system may interact with another system and is essentially a machine to machine system interface. The Ardtweeno system exposes this HTTP REST API which can be operated by any device capable of creating HTTP connections to the gateway for this reason. The HTTP REST API is the main interface for working with the Ardtweeno Application Gateway, it allows third parties to develop custom front-ends or data-aggregation systems which interact with the gateway, the REST API allows multiple SerialParser instances to communicate with the gateway from multiple remote locations as the method for adding new data to the gateway is also only possibly by communicating to the Ardtweeno Gateway through the HTTP REST API.

{
  "data": [
    25.5,
    999,
    10.2
  ],
  "key": "authenticationkeyfornode"
}

require 'rubygems'
require 'typheous'


packet = '{"data":[25.5, 999, 10.2], "key":"abcXYZ123etc"}'
apikey = 'abc33fssfe'


Typhoeus::Request.post("http://ardtweeno-hostname/packets",
:body => {:payload => packet, :key => apikey})

{"packets":[{
  "date": "2012-11-07",
  "hour": 9,
  "minute": 36,
  "node": "node0",
  "key": "0123456789abcdef",
  "seqNo": 0,
  "data": [
    23.5,
    997.8,
    30
  ]
},
{
  "date": "2012-11-07",
  "hour": 9,
  "minute": 37,
  "node": "node0",
  "key": "0123456789abcdef",
  "seqNo": 1,
  "data": [
    25.5,
    994.8,
    30
  ]
}],"total":200,"found":2}

{"nodes":[{
  "name": "node0",
  "key": "500d81aafe637717a52f8650e54206e64da33d27",
  "description": "This node is outside",
  "version": "0.1.0",
  "sensors": [
    "Temperature",
    "Barometric Pressure",
    "Altitude"
  ]
},
{
  "name": "node1",
  "key": "f937c37e949d9efa20d2958af309235c73ec039a",
  "description": "This node is inside",
  "version": "0.1.0",
  "sensors": [
    "Temperature",
    "Barometric Pressure",
    "Altitude"
  ]
}],"total":2,"found":2}

require 'rubygems'
require 'typhoeus'
require 'json'


body = {:key=> "1230aea77d7bd38898fec74a75a87738dea9f657",
                :notifyURL=>"http://some-server/push/notifications",
                :method=>"POST",
                :timeout=>"60"}

puts Typhoeus::Request.post("http://localhost:4567/api/v1/watch/node2", :body=>body)

{
  "title":"Push notification",
  "content":"node2",
  "code":""
}

{
  "zones": [
    {
      "zonename": "testzone0",
      "key": "455a807bb34b1976bac820b07c263ee81bd267cc",
      "nodes": [
        "node0",
        "node1"
      ]
    }
  ],
  "total": 2,
  "found": 1
}

14.8. Ardtweeno API Front End

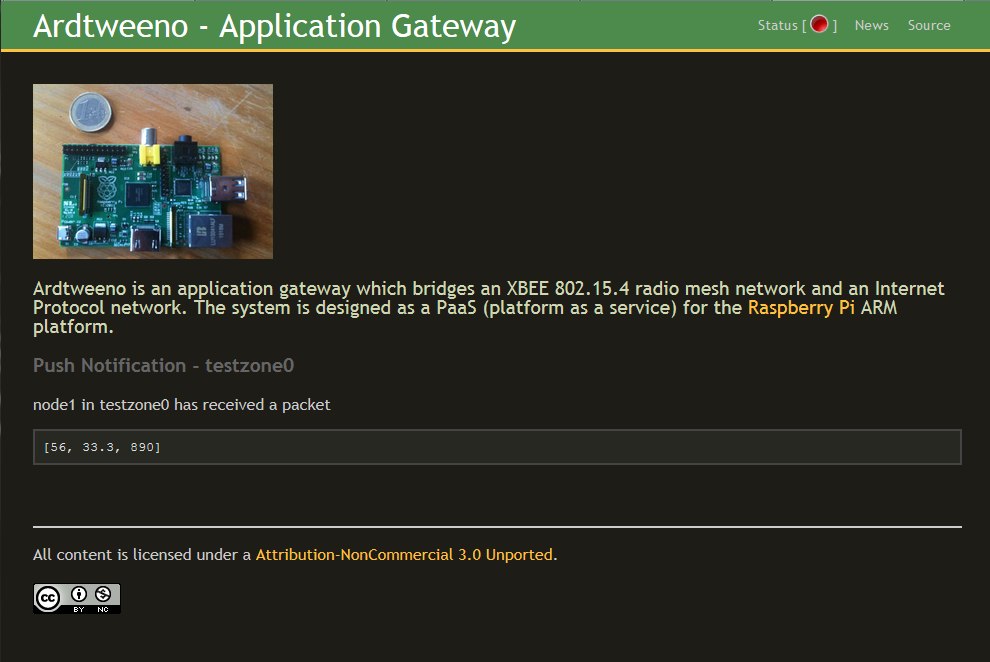

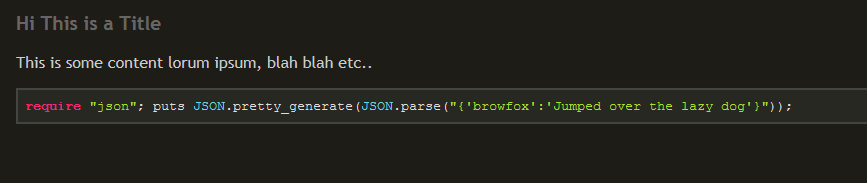

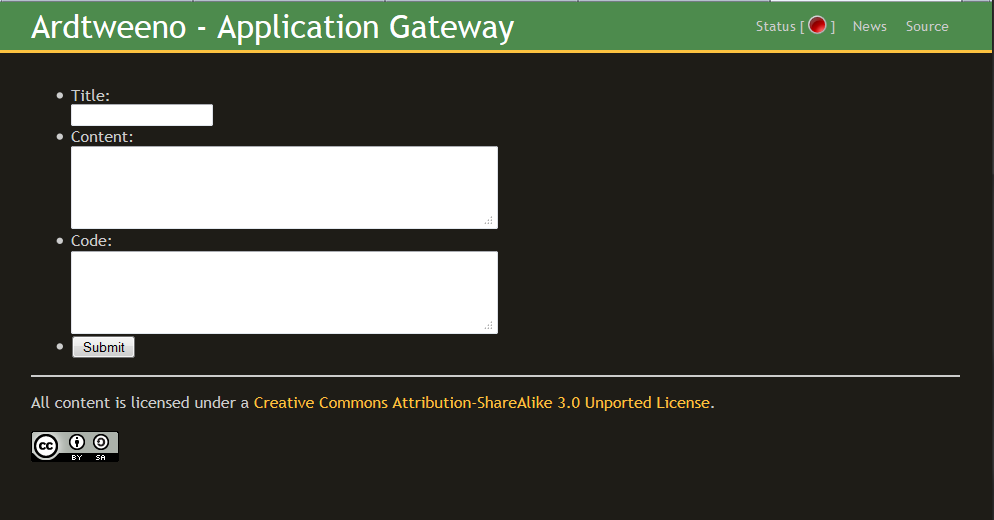

The following image shows the Ardtweeno HTTP Interface which is powered by the Sinatra micro web application framework. Users who connect directly to the gateway are greeted with this screen.

The ER2 version of Ardtweeno contains URI links to where the source for the system is contained on github.com along with a URI link to my personal blog. A simple status indicator is shown on this page also which shows whether or not the local SerialParser instance is running.

Content for this page can be either added manually using the form available at the http://<ardtweeno-server-address>/b97cb9ae44747ee263363463b7e56/create/post or by creating a HTTP POST request in the following way:

Target. POST /b97cb9ae44747ee263363463b7e56/create/post

Parameters Expected. title String containing the post title content String containing the post content code String containing code snippets, or preformatted output

Sample Usage. See the following for an example

require 'rubygems'
require 'typheous'


title = 'Hi This is a Title'
content = 'This is some content lorum ipsum, blah blah etc..'
code = 'require "json"; puts JSON.pretty_generate(
  JSON.parse("{'browfox':'Jumped over the lazy dog'}".to_json)
  );'


Typhoeus::Request.post("http://ardtweeno-hostname/packets",
:body => {:title=>title, :content=>content, :code=>code})

The output is something similar to the post seen in the image below:

The Ardtweeno system has been developed with the Raspberry Pi Model B running the Raspbian distribution operating system in mind, however it is technically feasible to run the system on any operating system which has the capability to compile native extensions for the Ruby gems which require it.

I hope to make the system available as a disk image ready for loading onto an SDCard for the Raspberry Pi, but for the ER2 system, the following software requirements must already be in place on the machine in order for the Ardtweeno - Application Gateway to operate and function correctly.

The following is a comprehensive software and hardware list of exactly what is required to get the barebones Ardtweeno system functional:

These instructions must be followed in sequence to ensure we have the required dependencies to perform the task at each stage. If for what ever reason you become stuck in configuring and setting the system up, please first examine the FAQ available at https://github.com/davidkirwan/ardtweeno/wiki otherwise please contact me for assistance on Twitter at: @kirwan_david

sudo apt-get install build-essential zlib1g-dev \
libssl-dev libreadline-dev libyaml-dev \
libcurl4-openssl-dev curl git-core \
python-software-properties gcc gobjc \
git

sudo apt-add-repository ppa:chris-lea/node.js
sudo apt-get -y update
sudo apt-get -y install nodejs

\curl -#L https://get.rvm.io | bash -s stable --autolibs=3 --ruby

# Then do the following to install Ruby 2.0.0p0 with OpenSSL support
rvm pkg install openssl

# Then
rvm install 2.0.0 \
    --with-openssl-dir=$HOME/.rvm/usr \
    --verify-downloads 1

# Then
rvm use 2.0.0

gem install rake nokogiri rack foreman json typhoeus mongo \
bson_ext rack-test test-unit rspec serialport sinatra thin \
rufus-scheduler bundler

# Checkout the latest source code from the Git repository
git clone git@github.com:davidkirwan/ardtweeno.git

# Enter the folder
cd ardtweeno/ardtweeno-gem

# Ensure the system dependencies are all correct
bundle install

# Build and install the Ardtweeno gem, possibly requires sudo
rake install

# Ensure the dependencies for the tech demo are all correct
cd ../tech-demo && bundle install && cd ../ardtweeno-gem

16.6. Launch the Ardtweeno Gateway

If you wish to stick with the Foreman method of launching the gateway, we can launch the Ardtweeno Gateway from the ardtweeno/ardtweeno-gem directory with the following command:

# Launch the Ardtweeno gateway on port 4567
foreman start -p 4567

Once complete we should be able to visit the following address in your browser and see the Ardtweeno gateway front end running: http://localhost:4567/

It should look something similar to the image below:

{
  "dev": "/dev/pts/2",
  "speed": 9600,
  "adminkey": "1230aea77d7bd38898fec74a75a87738dea9f657",
  "db": {
    "dbHost": "localhost",
    "dbPort": 27017,
    "dbUser": "david",
    "dbPass": "86ddd1420701a08d4a4380ca5d240ba7",
    "dbName": "ardtweeno",
    "dbPacketsColl": "packets"
  },
  "zones": [
    {
      "zonename": "testzone0",
      "zonekey": "455a807bb34b1976bac820b07c263ee81bd267cc",
      "zonenodes": [
        "node0",
        "node1"
      ]
    },
    {
      "zonename": "testzone1",
      "zonekey": "79a7c75758879243418fe2c87ec7d5d4e1451129",
      "zonenodes": [
        "node2",
        "node3"
      ]
    }
  ]
}

# Device the serial device to which the Ardtweeno SerialParser will connect
dev: /dev/ttyUSB0
speed: 9600

# Administrator API Key
adminkey: 1230aea77d7bd38898fec74a75a87738dea9f657

# Settings for the Database
db:
  dbHost: localhost
  dbPort: 27017
  dbUser: herp
  dbPass: 86ddd1420701a08d4a4380ca5d240ba7
  dbName: ardtweeno
  dbPacketsColl: packets

# Zone configuration
zones:
  -
    zonename: testzone0
    zonekey: 455a807bb34b1976bac820b07c263ee81bd267cc
    zonenodes:
      - node0
  -
    zonename: testzone1
    zonekey: 79a7c75758879243418fe2c87ec7d5d4e1451129
    zonenodes:
      - node1

-
  name: node0
  key: 500d81aafe637717a52f8650e54206e64da33d27
  description: This node has a temperature sensor
  version: 0.2.1
  sensors:
    - Temperature

The MVP system design called for a pair of XBEE radios configured for AT mode with the first as a single Coordinator AT and the second as a Router AT. With this configuration the XBEE system allows the router to only talk to the coordinator while the coordinator may only talk to the router. It is a single point to point link as seen in the image below:

It is this basic system which I have implemented in ER2. I have a third XBEE radio also configured as a router, and depending on whether or not I can get the system configured to operate correctly in a star topology, will decide if I will demo it during the presentation on May 20th.

At the earliest opportunity I intend to spend time implementing a fully functional SerialParser system which will allow me to switch to XBEE API firmwares and thereby open up the mesh networking potential of the system. Likewise the firmwares for each node will need to be fleshed out and hardened for production use.

17.1. XBEE Configuration

While it is possible to communicate with the XBEE radios directly over a serial connection, such as that provided by the USB breakout board as shown in the following image, it is a lot more user friendly to use the Digi Firmware Configuration Tool [xctu]. This tool is designed to work on the modern versions of the Microsoft Windows operating system.

I followed the advice about configuring XBEE radio devices from many sources such as [configuring-xbee], [sensor-networks] and [xbee-pairing] I decided the way to configure the network for the initial system release would be adding all XBEE radios to the same PAN or Personal Area Network. While setting the Destination High and Destination Low of the RouterAT radios to 0 to ensure they are addressing the Coordinator on this PAN. The Coordinator is configured to speak to FFFF which is the broadcast address for the PAN.

The image above shows the configuration page in the X-CTU utility. I set the following parameters shown in the table below for the single CoordinatorAT radio. The CoordinatorAT is responsible for maintaining order on the network, in my configuration I have configured it simply to allow this single radio to transmit broadcast data to all other radios on the network.

Table 4. XBEE Radio Configuration Settings for Coordinator AT

Parameter	Value
PAN ID	1337
Destination High	0
Destination Low	FFFF

In the inital system I have two RouterAT radios configured to speak to the CoordinatorAT with the following settings in the table below.

Table 5. XBEE Radio Configuration Settings for Router AT

Parameter	Value
PAN ID	1337
Destination High	0
Destination Low	0

By configuring the mesh network in the this way has produced a system with the following topology, which details the Ardtweeno Gateway at the top, and two Ardtweeno Mesh Network Nodes on either side at the bottom:

The PAN id is the number I choose for my personal Ardtweeno Mesh Network, however it is advisable you choose a value which better suits your needs. The settings used in the tables above are suitable for the initial Ardtweeno system, but with the change to the XBEE API firmwares in later versions, will require implementing a much more complex system for communicating between mesh network nodes. A fully featured and upgraded SerialParser system is the first step in achieving this goal as stated earlier in the document.

This section contains information about the physical Ardtweeno nodes such as the schematics I followed for my system. I created the schematics using the CadSoft tool EagleCad [eagle]. This software is the defacto standard utility for working with and developing electronic systems. The schematic CAD files themselves will be made available in the git repository for the project here: [ardtweeno-github] and fall under the same licence as the project, Creative Commons BY-NC 3.0.

18.1. Temperature Sensor Platform Schematic

This following image shows the layout of the temperature sensor platform which I have designed for the Ardtweeno system. The platform is made up of the following hardware:

• 1 x Arduino FIO Microcontroller
• 1 x Temperature Sensor DS18B20 (1-wire compatible)
• 1 x 4.7K Ohms Resistor
• 1 x 2Ah Lithium Polymer Battery
• 3 x 1W Solar Panel Max output 5V 600mAh

Ardtweeno Temperature Sensor Platform

I have not included the information in the schematic regarding how the system is powered. With the Arduino FIO platform we can power the system by battery, with the option to charge the battery by micro usb, or trickle charge with a solar panel array. I choose to use a solar panel array to keep the battery charged. This ensures the system can be run autonomously, while constantly returning data back to the Ardtweeno Gateway. The image below shows the completed physical system.

Ardtweeno Temperature Sensor Platform

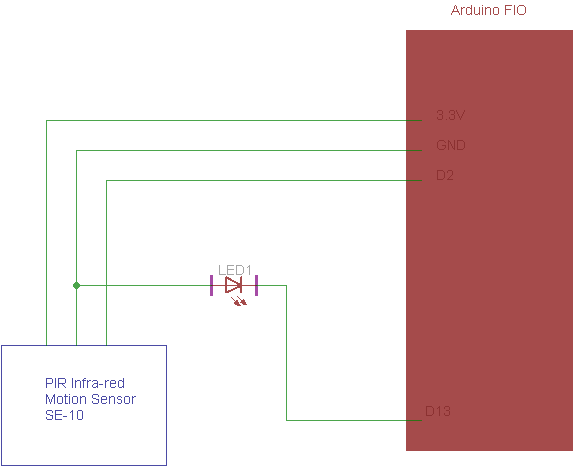

18.2. Movement Sensor Platform Schematic

This following image shows the layout of the movement sensor platform which I have designed for the Ardtweeno system. The platform is made up of the following hardware:

• 1 x Arduino FIO Microcontroller
• 1 x PIR infra-red motion sensor SE-10
• 1 x LED

Ardtweeno Movement Sensor Platform

For the movement sensor platform I decided to go with a mains power source to power the Arduino FIO microcontroller. I put together a DIY solder kit for a breadboard PSU [breadboard-psu], and it is this which I plan to power the node. The image below shows the physical completed Ardtweeno Node.

Ardtweeno Movement Sensor Platform

There are a number of technologies listed in the bibliography which I have not listed. This is due to them being either obviously unsuitable or deemed so after an attempt at incorporating them into the project. The following is by no means an exhaustive list, but merely a sample of the various technologies which were used in the Ardtweeno system.

Microcontroller: ATmega328P
Operating Voltage: 3.3V
Input Voltage: 3.35 -12 V
Input Voltage for Charge: 3.7 - 7 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40 mA
Flash Memory: 32 KB (of which 2 KB used by bootloader)
SRAM: 2 KB
EEPROM: 1 KB
Clock Speed: 8 MHz

CPU: 700 MHz ARM1176JZF-S core (ARM11 family)
GPU:
        Broadcom VideoCore IV OpenGL ES 2.0 (24 GFLOPS)
        MPEG-2 and VC-1 (with license),
        1080p30 h.264/MPEG-4 AVC high-profile
        decoder and encoder
Memory (SDRAM): 256/512 MB (shared with GPU)
USB 2.0 ports: 2
Video outputs:
        Composite RCA (PAL and NTSC),
        HDMI (rev 1.3 & 1.4),
        raw LCD Panels via DSI
Audio outputs:
        3.5 mm jack,
        HDMI,
        I2S audio
Onboard storage: SD / MMC / SDIO card slot
Onboard network: 10/100 Ethernet
Low-level peripherals:
        8 x GPIO,
        UART,
        I2C bus,
        SPI bus with two chip selects,
        I2S audio,
        +3.3 V,
        +5 V,
        ground
Power ratings:
        300 mA (1.5 W)
        700 mA (3.5 W)
Power source:
        5v via MicroUSB,
        GPIO header
Size: 85.60 mm x 53.98 mm
Weight: 45 g
Operating systems:
        Arch Linux ARM,
        Debian Linux,
        Fedora,
        FreeBSD,
        Plan 9,
        Raspbian OS,
        RISC OS,
        Slackware Linux

One of my main personal goals is to eventually participate in cutting edge research in a computing science field, ideally also become involved in the creation and development of new technology based on this research. In the coming months I intend on creating a research paper suitable for submission to a technology conference in Ireland. I think the opportunity to present my work at a local conference in Ireland would not only be an amazing experience but would help kick start my career as a researcher by gaining some initial publications. I hope to write a research paper detailing my work on the Ardtweeno project and submit it to one of these conferences at the earliest opportunity. Another possibility I am currently considering is the pursuit of a MSc by research, there is a possibility the Ardtweeno system might align with ongoing research projects at the [tssg]. I would jump at the opportunity if this did occur.

There are a number of conferences in Ireland listed here [wikicfp] which could possibly be interested in taking a paper from an undergraduate student. As I have quickly learned, the task of choosing which conferences to send a paper cannot be trivialised. I have to spend time researching the requirements for submitting a paper to each one. This is potentially beyond the scope of my project as far as marking is concerned so this will be placed on the backlog until the final report has been submitted for marking.

The space that I currently see Ardtweeno occupying is a platform as a service which may enable developers to produce home automation systems, very much like a locally running version of one of the cloud infrastructure systems detailed in the table below such as [cosm] or [nimbits]. It has the ability to receive packets of information and then store them for later analysis and graphing much like these propriety systems mentioned. It also offers a REST API for data retrieval and manipulation. With the knowledge of what my system is capable of, along with looking at what is currently available on the market, I am confident the system is worth further research and development.

I believe the low cost and powerful nature of the hardware deployed in the project provides great potential to develop systems in this space. Eventually I hope to mature the system to the point where applications can be developed to take advantage of the Ardtweeno features while building smart home / commercial automation systems. With the eventual widespread adoption of IPV6 networking the Internet of Things will almost certainly become the reality. I can see the Ardtweeno with a little more development focusing on a strong set of initial features, could offer a valuable contribution to making this Internet of Things possible.

I am very happy in general with the overall Ardtweeno Application Gateway system and how it has matured since September 2012. I feel I have achieved everything I initially set out to, due to meticulous planning, dedication and constant adherance to the schedule at all stages of the development cycle. The work flow which I designed at the start of September seems to have suited the project well.

I found developing the documentation in the [asciidoc] markup language to suit me very well, the system which was put in place for splitting sections out into separate files especially suited this project in my opinion. I can already see future documentation being built from the sections I developed for the project deliverables such as the HTML installation documentation which will be stored on Github pages. I can very quickly pick and choose the essential sections which relate to the technical areas of the project, and using the build tool, generate the report output immediately. This system should scale well with multiple collaborators as the project documentation is under source control also.

I am delighted with my choice of picking the Ruby language with which I implemented the Ardtweeno system, the simplicity and design of this language ensures every line of code is a joy to write. It was not always the case however, as I did run into some serious technical difficulties in October - December 2012, as I struggled to implement a basic SerialParser subsystem for retrieving packets from the mesh network. I had hoped to implement this subsystem in the Ruby language also, but due to an issue with threading and serial read time outs which appeared to be a manifestation of a low level bug within the standard library, I was forced to seek refuge in another language, I picked NodeJS for multiple reasons. I’d heard a lot of things from various people about the language, and saw it as an opportunity to try it out.

Unsurprisingly NodeJS presented its own problems, such as an issue where running the newly implemented SerialParser in headless mode resulted in the first packet received on the XBEE radio to be parsed successfully, while all subsequent packets failed to be correctly collected. When I ran the exact same system and monitored with the aid of debug statements the system functioned flawlessly for the most part. I have given up on developing a SerialParser system in NodeJS, one of the next major tasks in the project will to replace the SerialParser in a language such as C or C++. While it is not ideal, the NodeJS system will work in the interim.

I hope the Ardtweeno system becomes a useful tool for users in the open source and open hardware community. To help see this goal become a reality, I have opened up the Github repository for the Ardtweeno Application Gateway project and released it as an open source project under the Creative Commons BY-NC 3.0 licence. By releasing the system as an open source project I hope to maximise the possibility of collaboration with other interested parties. There is a potential for many such parties which desire the features provided by Ardtweeno who may not be in a position to either develop the entire system from scratch, or willing to pay for the services of some of the similar commercial products currently available.

However, should the system never gain a single collaborator I do still intend on continuing to develop the Ardtweeno system, for my own amusement if nothing else. The system has always been designed first and foremost to be used for my own personal use in my home, should someone else find it somewhat useful is an added bonus.

A HTML version of this document is released at: http://davidkirwan.github.io/ardtweeno/ and the wiki for the Ardtweeno system is available here: https://github.com/davidkirwan/ardtweeno/wiki
